General Ultrasound Table with… | Clinton Industries, Inc.

Model # 80063

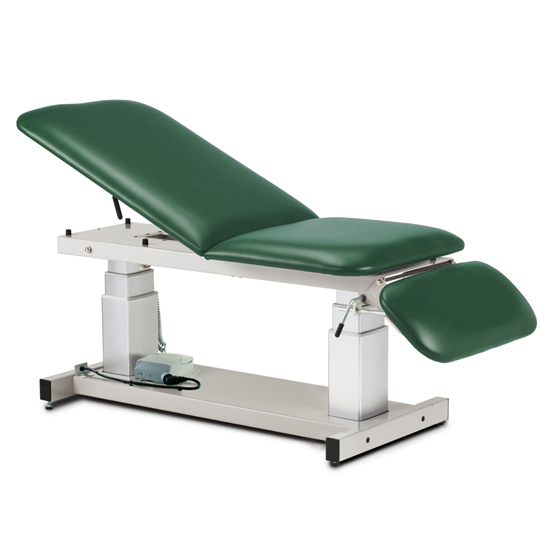

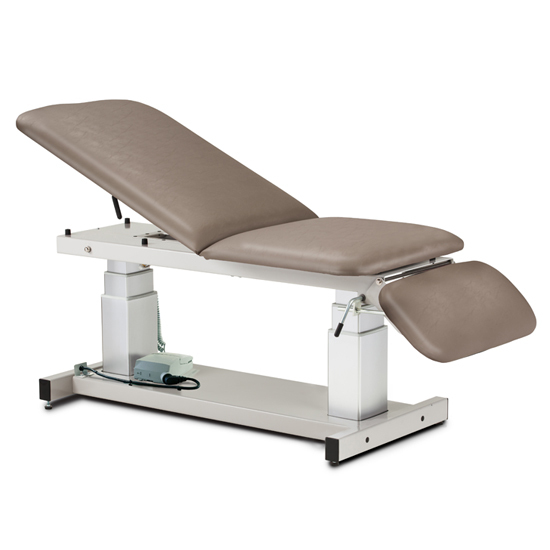

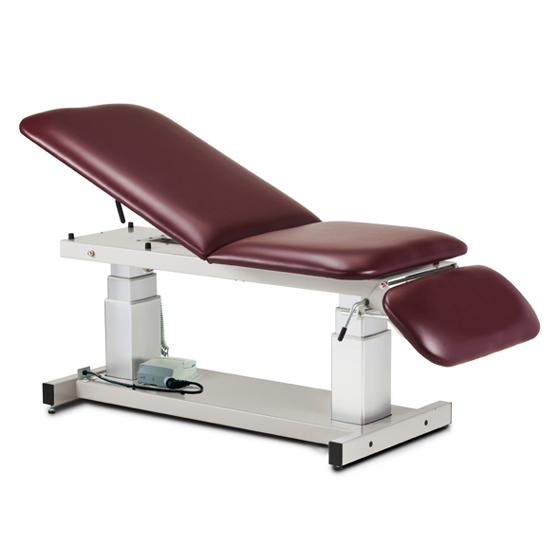

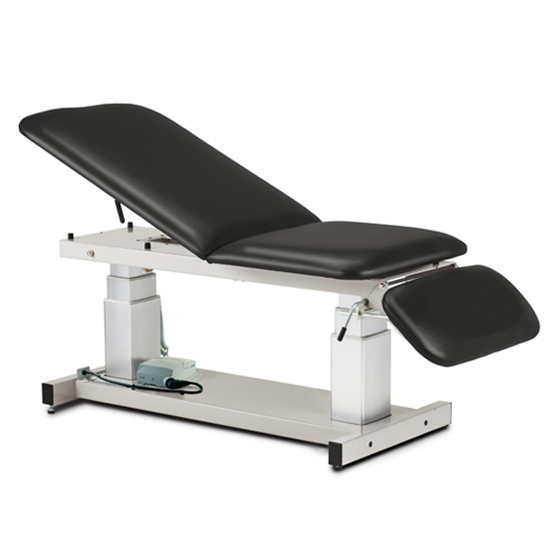

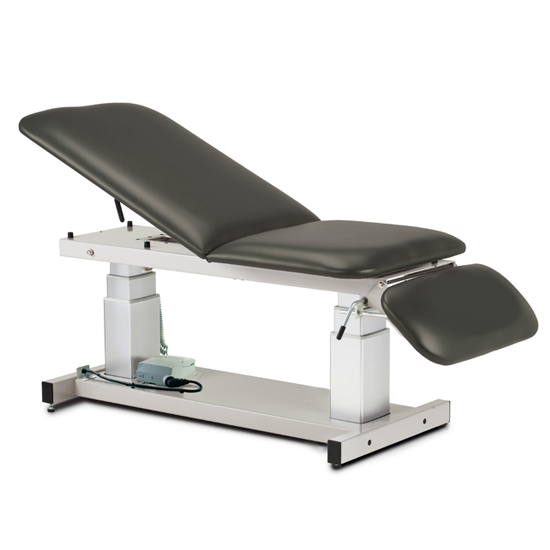

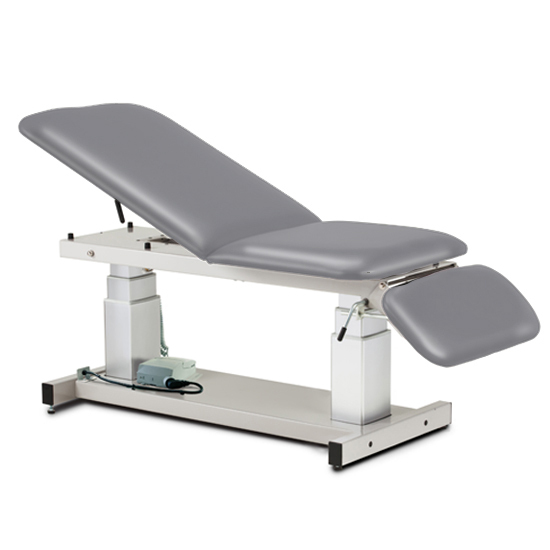

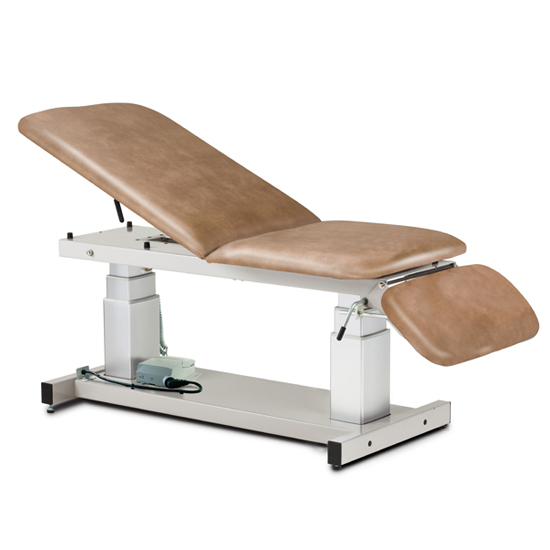

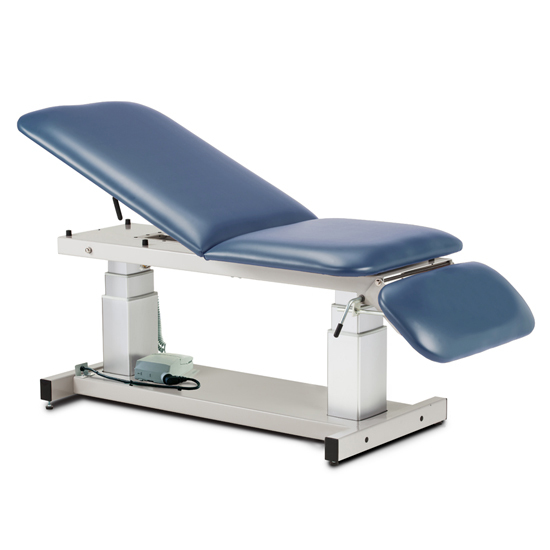

General Ultrasound Table with Three-Section Top

Three-piece top with pneumatic adjustable backrest and manual footrest
Footrest is adjustable from either side and lowers up to 80º from flat position
Trendelenburg/Reverse Trendelenburg plus or minus 15 º
Easy-to-use hand control
All-welded base and top frame
Unobstructed base design
Dual column lift system adds rigidity
Paper dispenser included
Industry leading 5-year, limited warranty
Optional side rails & casters available
34" wide model available
Model 80063: 500 lbs load capacity under normal use
Model 80063-X: 600 lbs load capacity under normal use

Download Spec Sheet

80063 back up NM

80063 Reverse Trend NM

80063 Chrome Rails NM

80063 back up NM

80063 Trend NM

80063 Reverse Trend NM

80063 Chrome Rails NM

Specifications

Unit: Imperial Metric

80063 General Ultrasound Table with Three-Section Top	Length	Width	Height Range
80063 (overall)	76"	27"	21.5" – 37.5"
Backrest	38"	27"
Footrest	13"	27"
80063-X (overall)	76"	34"	21.5" – 37.5"
Backrest	38"	34"
Footrest	13"	34"
80063 (overall)	193 cm	69 cm	55 cm – 95 cm
Backrest	97 cm	69 cm
Footrest	33 cm	69 cm
80063-X (overall)	193 cm	86 cm	55 cm – 95 cm
Backrest	97 cm	86 cm
Footrest	33 cm	86 cm

Color Charts

Upholstery Color Selector

Options

011 Power Backrest

• Smooth power control raises backrest to 80º and lowers to flat
080 Safety Straps

• 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners
087 Locking Casters

• 3" heavy duty, rubber wheel, easy-roll casters

Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)
090 Power Footrest

• Smooth power control lowers footrest to 30º and raises to flat
098 Side Rails for Trendelenburg tables

• Pair
• Chrome
• Positions up and down
• Plunger height adjustment
• 29" x 12"
040 Paper Cutter-Power Table

• Clear plastic with elastic straps and buckle

Product Video

Trendelenburg Table Reset Procedure

Power Ultrasound and Imaging Trendelenburg Tables
