Model # 80069

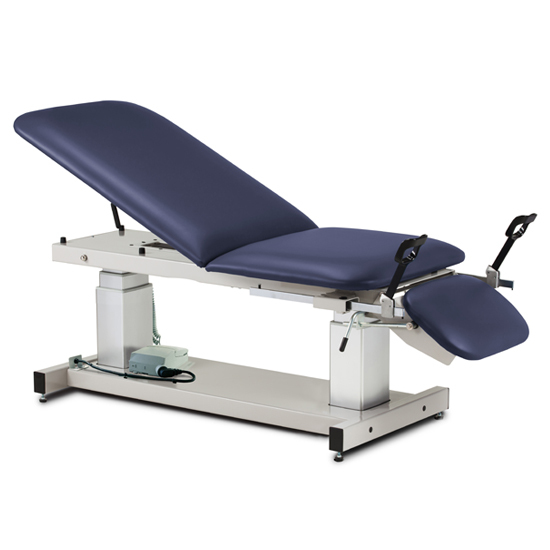

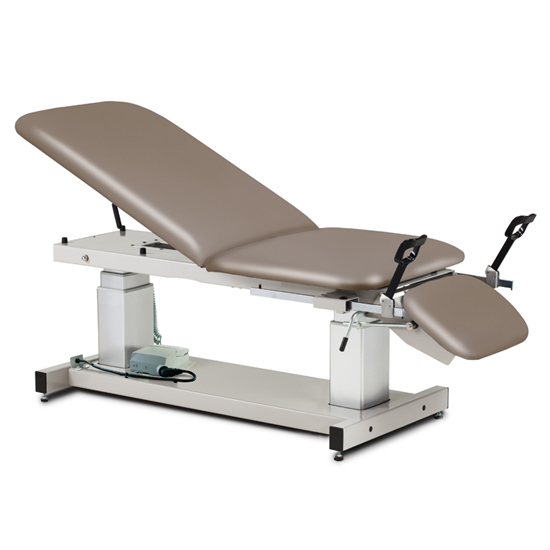

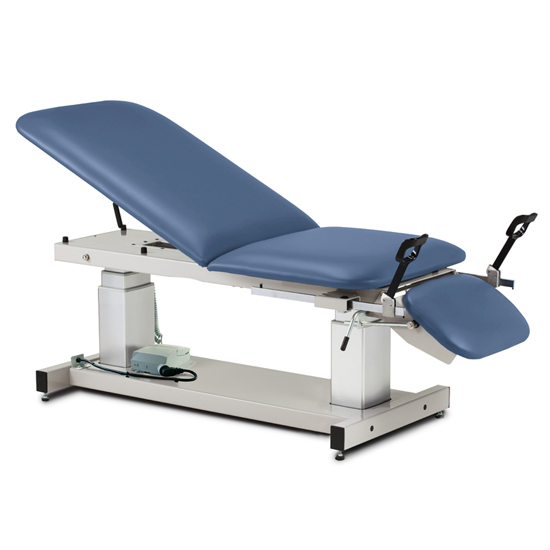

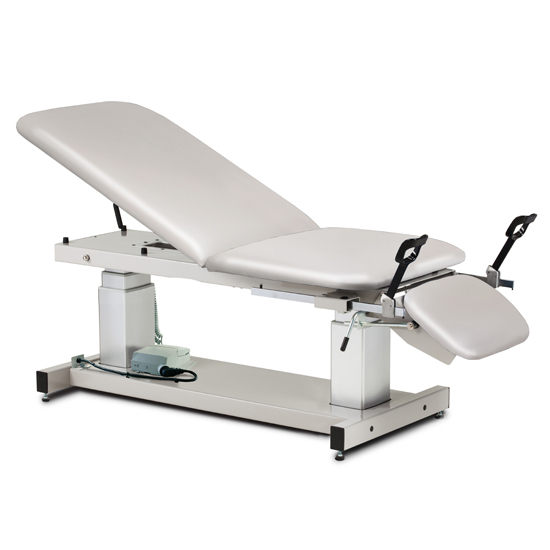

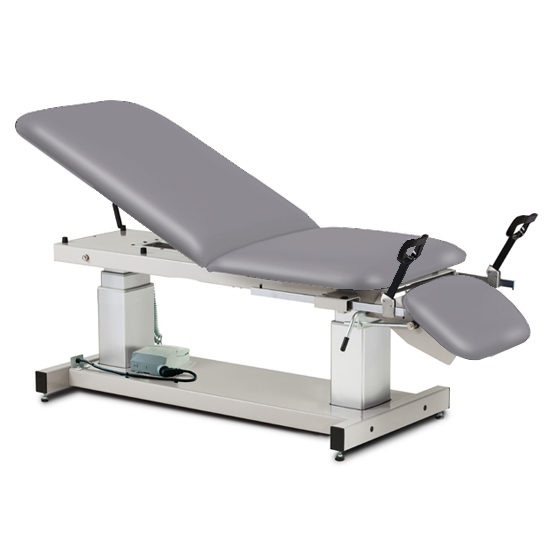

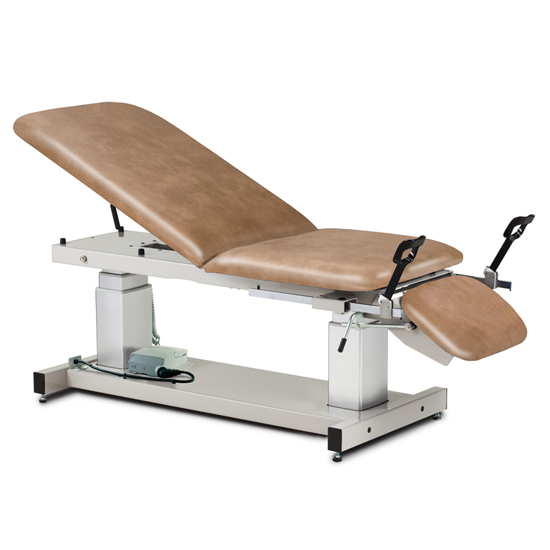

Multi-Use, Ultrasound Table with Stirrups

5 year limited warranty
  • Three-piece top with pneumatic adjustable backrest, manual footrest, and stirrups
  • Footrest is adjustable from either side and raises up to 30º from flat position
  • Trendelenburg/Reverse Trendelenburg plus or minus 15 º
  • Easy-to-use hand control
  • All-welded base and top frame
  • Unobstructed base design
  • Dual column lift system adds rigidity
  • Paper dispenser included
  • Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
  • Industry leading 5-year, limited warranty
  • Optional side rails & casters available
  • 34" wide model available
  • 550 lbs load capacity under normal use
80069 Back Up

Specifications

Unit: Imperial Metric
80069 Multi-Use, Ultrasound Table with Stirrups Length Width Height Range
80069 (overall) 76" 27" 21.5" – 37.5"
Backrest 38" 27"
Footrest 12" 18.5"
80069-X (overall) 76" 34" 21.5" – 37.5"
Backrest 38" 34"
Footrest 12" 18.5"
80069 (overall) 193 cm 69 cm 55 cm – 95 cm
Backrest 97 cm 69 cm
Footrest 30 cm 47 cm
80069-X (overall) 193 cm 86 cm 55 cm – 95 cm
Backrest 97 cm 86 cm
Footrest 30 cm 47 cm

Options

  • 011 Option
    011 Power Backrest

    • Smooth power control raises backrest to 80º and lowers to flat

  • 012 Option
    012 Headrest/Power Tables

    • Padded and adjustable
    • The headrest extends the table’s length for extra tall patients

  • 035 Option
    035 Armboard/Power Tables

    • Padded, ratchet style, rotating armboard
    • Rotates 180º
    • Interchangeable on right or left side

  • 080 Option
    080 Safety Straps

    • 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
    • 2 safety staps per set.
    • Bariatric straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners

  • 083 2 Option2
    083 2-Hook IV Pole and Mounting Bracket

    • Chrome pole with height adjustment
    • Removable bracket mounts to either side of the head end
    • 2-hook top

  • 087 Option
    087 Locking Casters

    • 3" heavy duty, rubber wheel, easy-roll casters

    Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)

  • 090 Option
    090 Power Footrest

    • Smooth power control lowers footrest to 30º and raises to flat

  • 098 Option
    098 Safety Rails

    • Pair
    • 3-height, position
    • Plunger height adjustment

  • 117 Option Vinyl
    117 PVC-Free, Eco Vinyl & Fire-Rated Vinyl

    Click here (117 Option Color Selections ) to select either PVC-Free, Eco Vinyl or Fire-Rated Vinyl.
    Upcharge applies.
