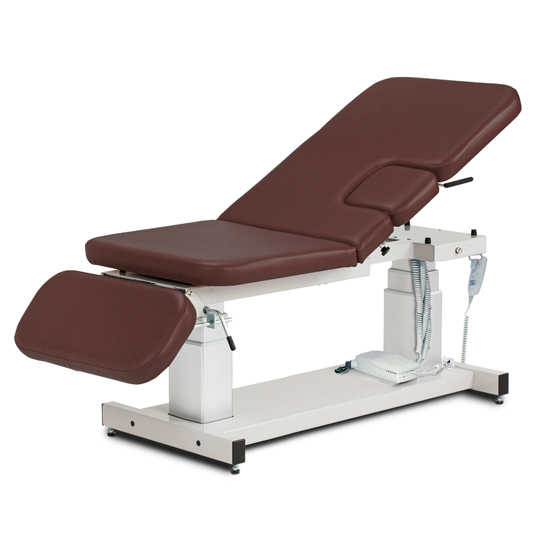

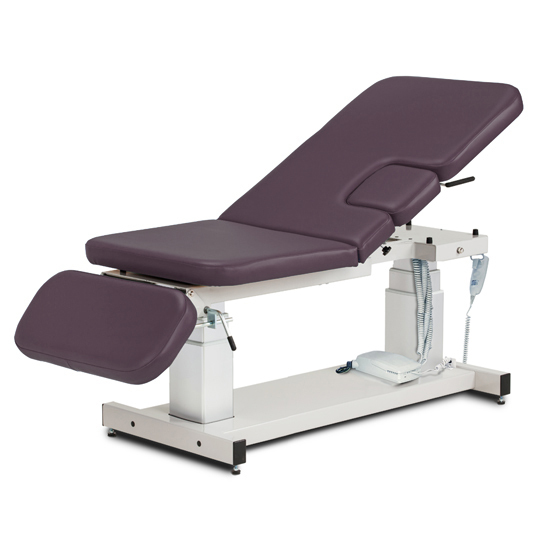

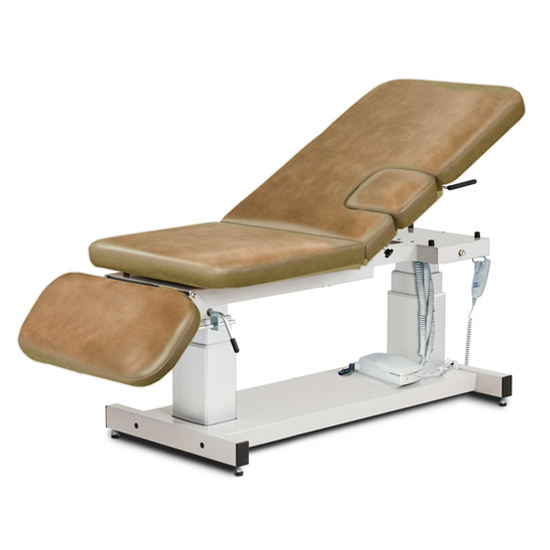

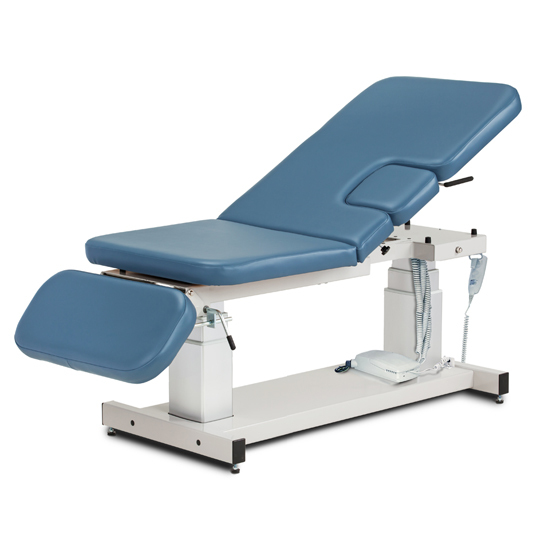

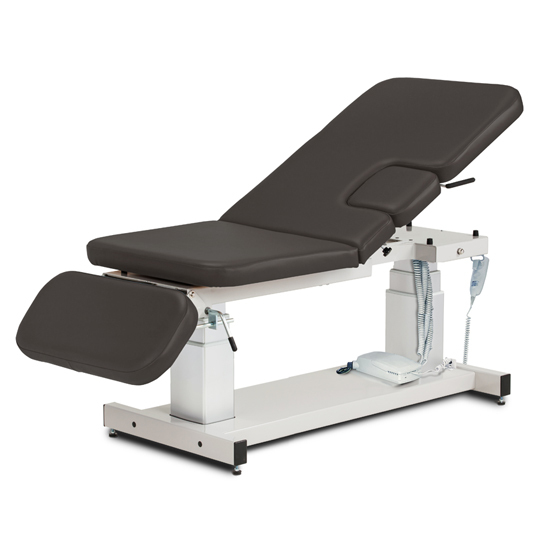

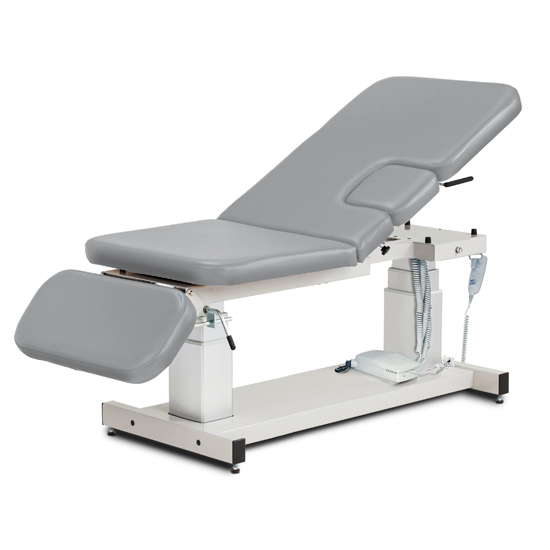

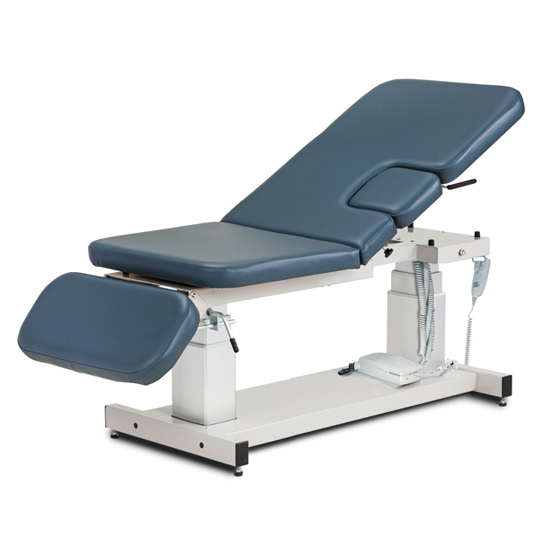

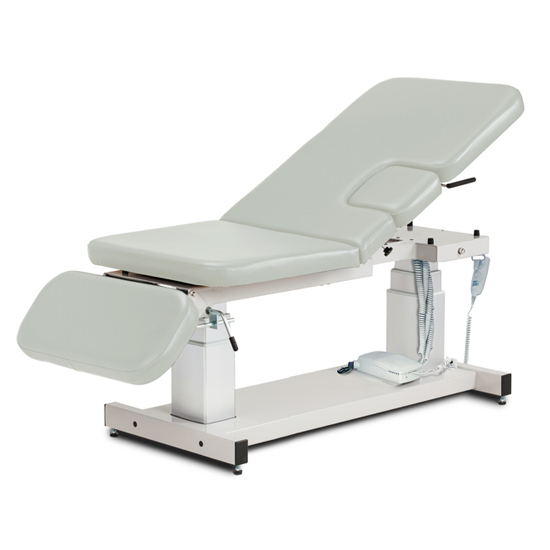

Model # 80073

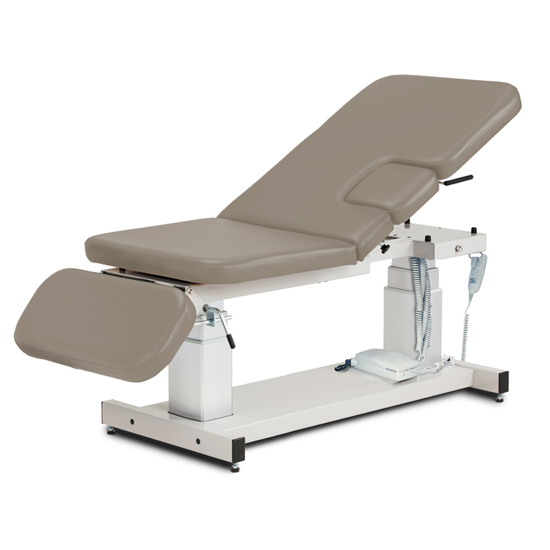

Imaging Table with Three-Section Top and Drop Window
- Three-piece top with pneumatic adjustable backrest, manual footrest and window drop
- Footrest is adjustable from either side and lowers up to 80º from flat position
- Optional side rails & casters (see options below)
- Trendelenburg/Reverse Trendelenburg plus or minus 15º
- Easy-to-use hand control
- All-welded base and top frame
- Unobstructed base design
- Dual column lift system adds rigidity
- Paper dispenser included
- Industry leading 5-year, limited warranty
- 34" wide model available
- Model 80073: 500 lbs load capacity under normal use
- Model 80073-X: 600 lbs load capacity under normal use
Specifications
Unit: Imperial Metric| 80073 Imaging Table with Three-Section Top and Drop Window | Length | Width | Height Range |
|---|---|---|---|
| 80073 (overall) | 76" | 27" | 21.5" – 37.5" |
| Backrest | 38" | 27" | |
| Footrest | 12" | 27" | |
| Window | 10" | 10" | |
| 80073-X (overall) | 76" | 34" | 21.5" – 37.5" |
| Backrest | 38" | 34" | |
| Footrest | 12" | 34" | |
| Window | 10" | 10" | |
| 80073 (overall) | 193 cm | 69 cm | 55 cm – 95 cm |
| Backrest | 97 cm | 69 cm | |
| Footrest | 31 cm | 69 cm | |
| Window | 25 cm | 25 cm | |
| 80073-X (overall) | 193 cm | 86 cm | 55 cm – 95 cm |
| Backrest | 97 cm | 86 cm | |
| Footrest | 30 cm | 86 cm | |
| Window | 25 cm | 25 cm |
Options
-
011 Power Backrest
• Smooth power control raises backrest to 80º and lowers to flat
-
080 Positioning Straps
• 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 straps per set.
• Bariatric straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners -
087 Locking Casters
• 3" heavy duty, rubber wheel, easy-roll casters
Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)
-
090 Power Footrest
• Smooth power control lowers footrest to 30º and raises to flat
-
098 Side Rails for Trendelenburg tables
• Pair
• Chrome
• Positions up and down
• Plunger height adjustment
• 29" x 12" -
040 Paper Cutter-Power Table
• Clear plastic with elastic strap and buckle
