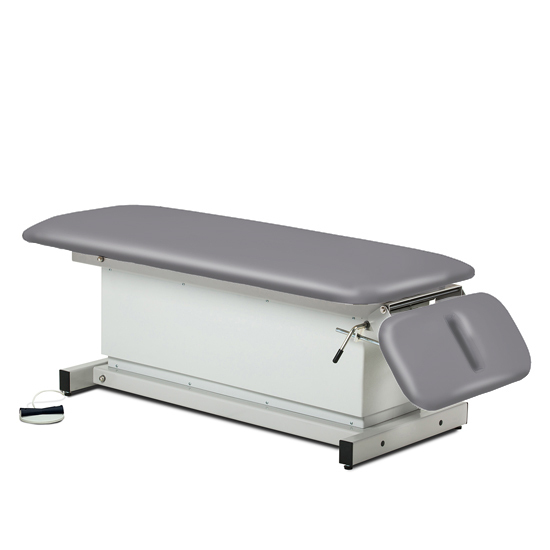

Model # 81220
Power 500, Shrouded, Space Saver, Power Table with Drop Section
- Drop Section is adjustable from either side and lowers up to 80 degrees from flat
- Standard drop section has nose hole, but it may be ordered without a nose hole (Please specify when ordering)
- Easy-clean, ABS plastic enclosed lift
- Electric power height adjustment with foot control
- Ultra-strong, uni-frame base and top construction
- Heavy duty, all welded, lift mechanism
- Durable gray powder-coated steel frame
- Self-lubricating pivot points
- Smooth 110 volt electric height adjustment
- Power supply and motor meets UL 60601-1 and CAN/CSA C22.2 601.1
- Hands-free low voltage foot control
- Easy service, self contained, electrical components
- Seamless, rounded corner, upholstered top
- 2" ( 5 cm) ultra-firm padding
- Customize with options
- Made in the USA by Clinton Industries
- 500 lbs. (227 kg) load capacity under normal use
Specifications
Unit: Imperial Metric| 81220 Power 500, Shrouded, Space Saver, Power Table with Drop Section | Lenth | Width | Height Range |
|---|---|---|---|
| 81220 (overall) | 76" | 27" | 21" – 34" |
| Drop Section | 13" | 27" | |
| 81220 (overall) | 193 cm | 69 cm | 53 cm – 86 cm |
| Drop Section | 33 cm | 69 cm |
Options
-
030 Paper Dispenser- Power Table
• Accommodates paper rolls from 18" (45.72cm) to 21" (53.34cm) wide
-
040 Paper Cutter-Power Table
• Clear plastic with elastic strap and buckle
-
034-Paper Dispenser/Cutter Combo-Power Table
-
080 Positioning Straps (shrouded)
• 2" x 120" (5.08cm x 304.8cm) strap is secured with quick hook and loop fasteners
• 2 straps per set -
082 Side Rails (shrouded)
-
084 Hand-Held Height Control
• Alternative to foot control
• Stores easily under top when not in useNOTE: This option REPLACES the foot controller. ONLY the hand-held controller will accompany the table.
-
087 Locking Casters
• 3" heavy duty, rubber wheel, easy-roll casters
Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)
Product Video
Shrouded Power Tables
