Model # 81399

Model #81399

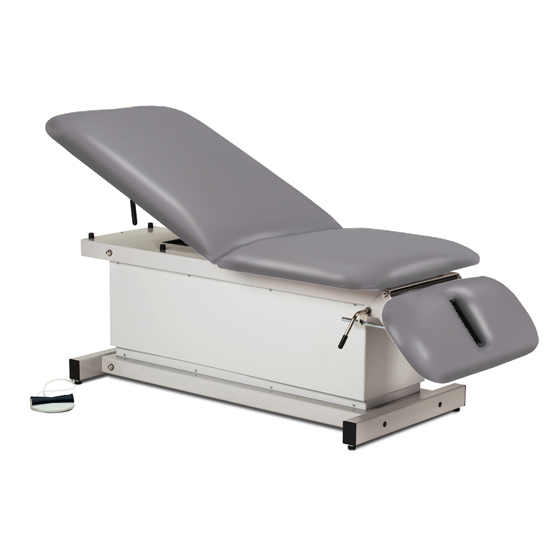

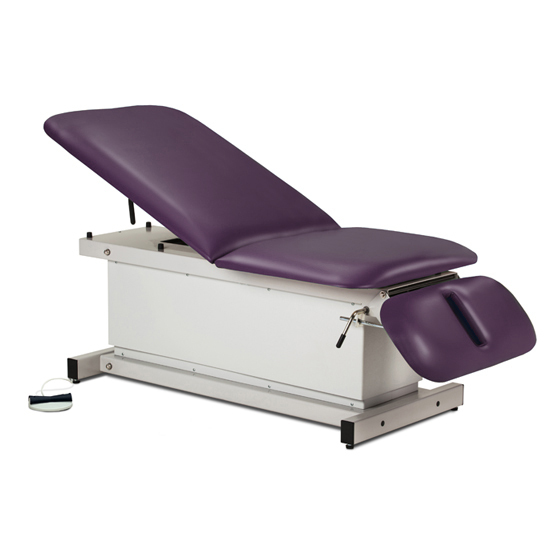

Power XL 600, Shrouded, Power Table with Adjust. Backrest and Drop Section

Request more information

Description
Specifications
Options
Color Chart
Videos
Catalogs

Model #81399

Power XL 600, Shrouded, Power Table with Adjust. Backrest and Drop Section

Features easy-clean, 30" wide top with adjustable backrest and drop section
Standard drop section has nose hole, but it may be ordered without a nose hole (Please specify when ordering)
600 lbs. (272 kg) load capacity under normal use
Easy-clean, ABS plastic enclosed lift
Backrest adjusts from either side and raises 80 degrees from flat
Drop section adjusts from either side and lowers up to 80 degrees from flat
Smooth, electric, raise and lower height adjustment
Power supply and motor meets UL 60601-1 and CAN/CSA C22.2 601.1
Pneumatic backrest cylinder is mounted internally
Full width backrest hinge adds rigidity for greater support
Full width backrest hinge adds rigidity for greater support
Heavy duty, steel frame is fabricated in the USA by Clinton Industries
Dependable scissors-lift features an H-leg design for extra stability
Rounded corner 1" plywood top with 2" of ultra firm padding covered by heavy weight upholstery
Harden steel bolts and self lubricating pivot bearings for years of dependable service
Low height may help achieve ADA tax credit

Download Data Sheet

Imperial
Metric

81399 Power XL 600, Shrouded, Power Table with Adjust. Backrest and Drop Section	Length	Width	Height Range
81399	72"	30"	21" – 34"
Drop Section	13"	30"
Backrest	38"	30"
81399	183 cm	76 cm	54 cm – 87 cm
Backrest	97 cm	76 cm
Drop Section	33 cm	76 cm

030 Paper Dispenser- Power Table

• Accommodates paper rolls from 18" (45.72cm) to 21" (53.34cm) wide

040 Paper Cutter-Power Table

• Clear plastic with elastic strap and buckle

034-Paper Dispenser/Cutter Combo-Power Table

080 Positioning Straps

• 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 straps per set.
• Larger straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners

082 Side Rails

• Pair
• Chrome
• Positions up and down
• Plunger height adjustment
• 29" x 12"

084 Hand-Held Height Control

• Alternative to foot control
• Stores easily under top when not in use

NOTE: This option REPLACES the foot controller. ONLY the hand-held controller will accompany the table.

087 Locking Casters

• 3" Heavy duty, rubber wheel, locking, swivel casters on all four corners makes it easy to reposition the table and then lock it securely it in place.

Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)
