Model # 85100

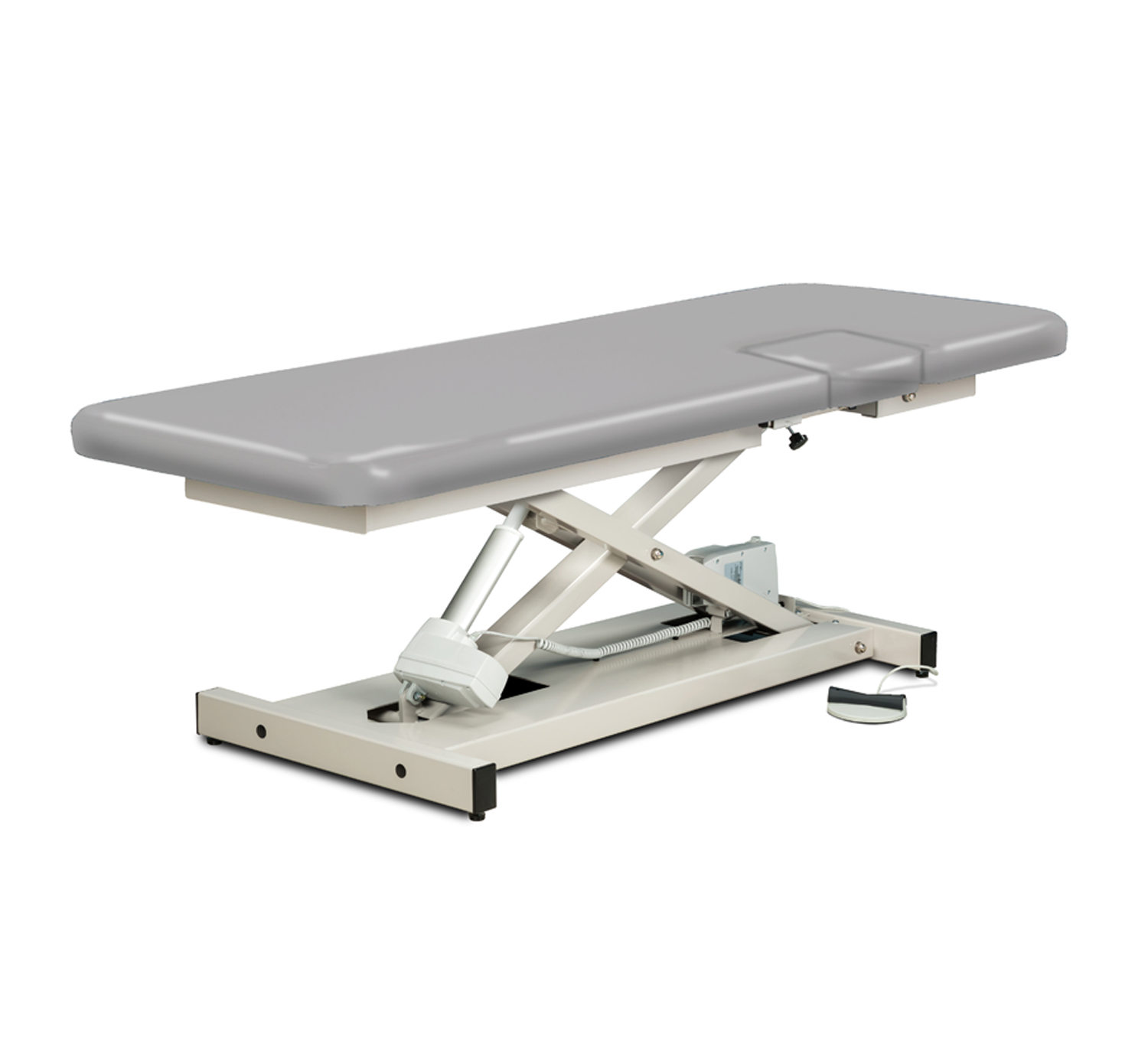

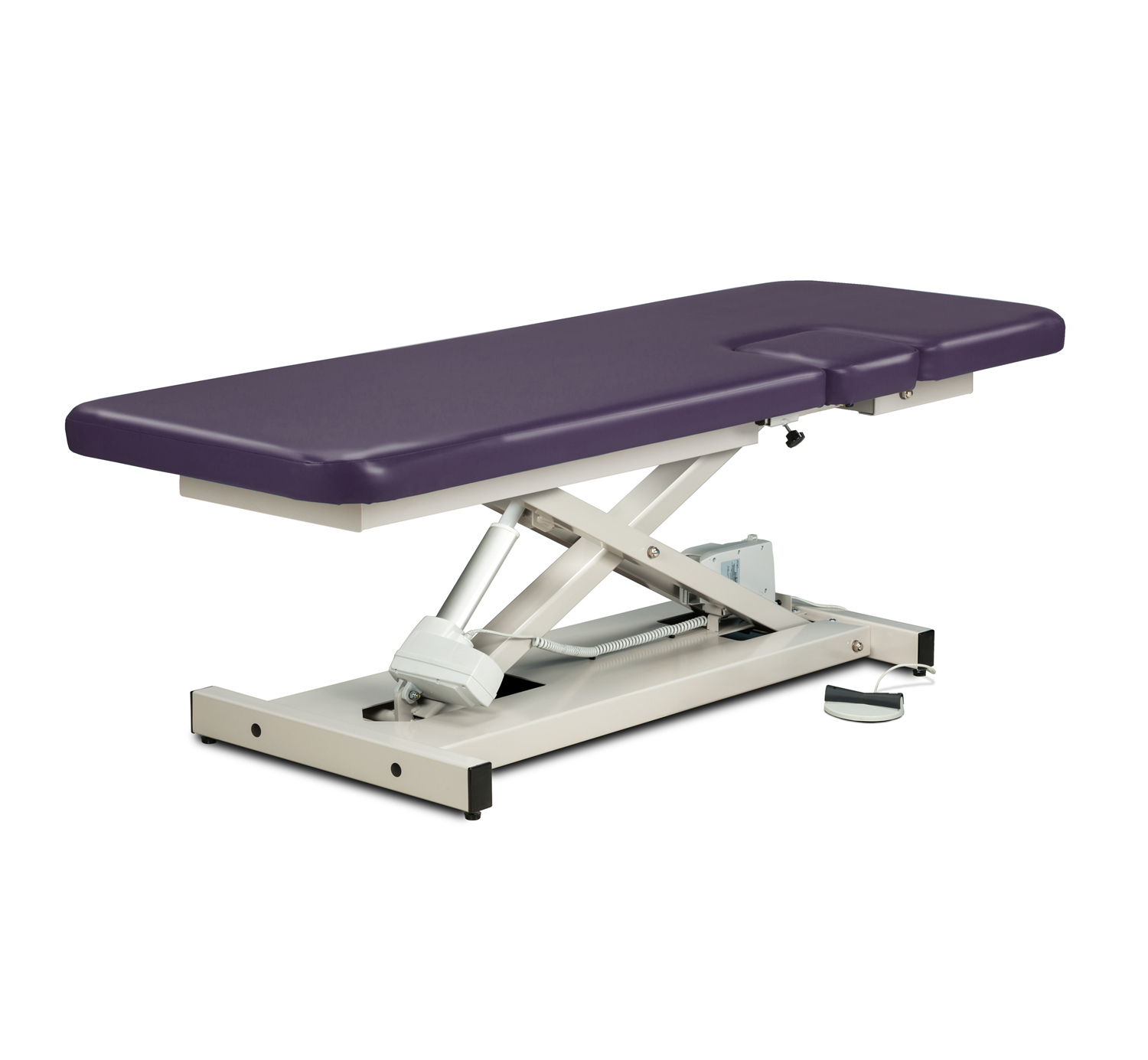

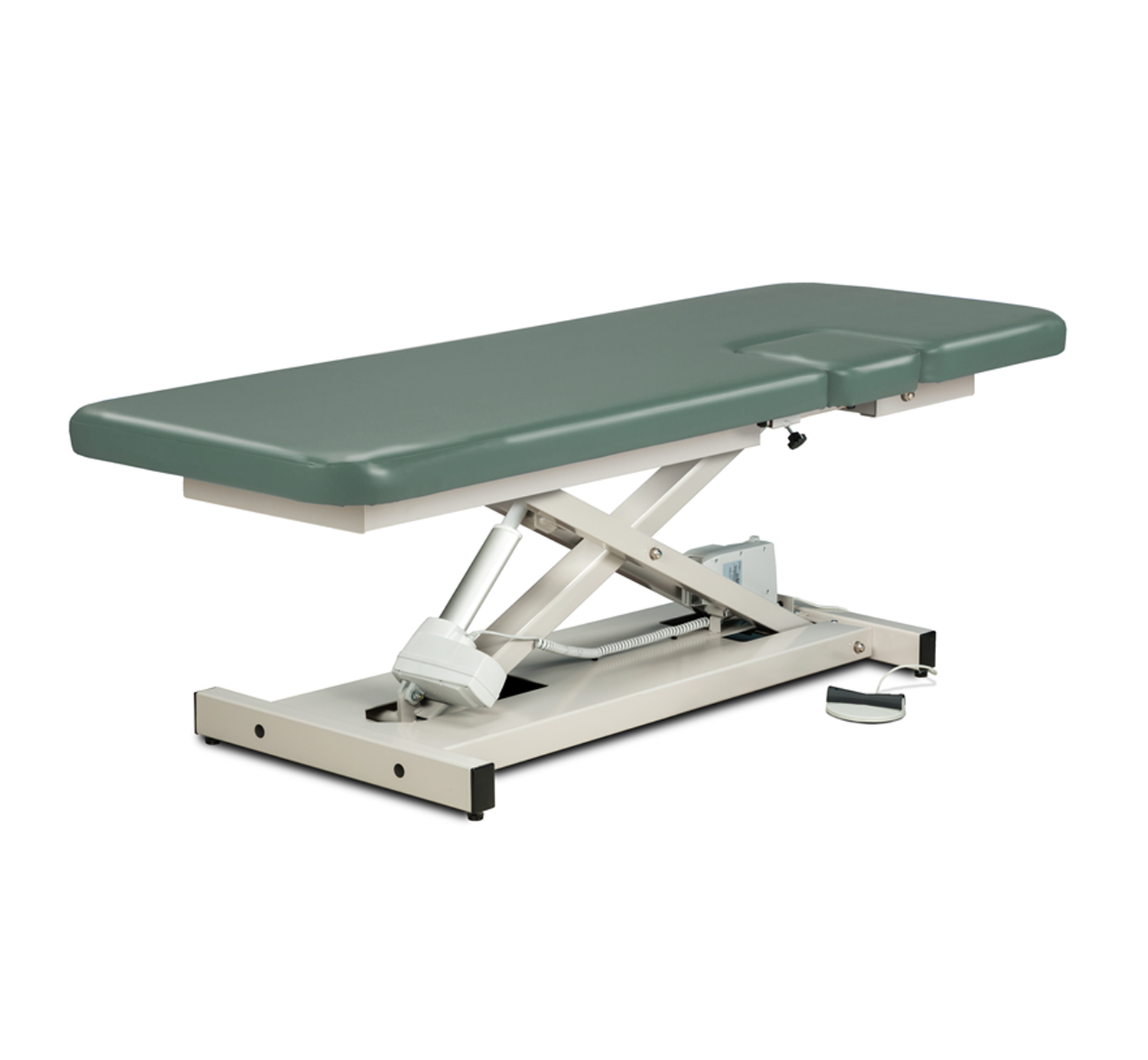

Open Base, Power Imaging Table with Window Drop

5 year limited warranty Made in the USA
Description
  • Features flat top with 10" x 10" hinged imaging window section with metal slide latch
  • Electric power height adjustment with foot control
  • Ultra-strong, uni-frame base and top construction
  • Heavy duty, all welded, lift mechanism
  • Durable gray powder-coated steel frame
  • Self-lubricating pivot points
  • Smooth 110 volt electric height adjustment
  • Power supply and motor meets UL 60601-1 and CAN/CSA C22.2 601.1
  • Hands-free low voltage foot control
  • Easy service, self contained, electrical components
  • Rounded corner, upholstered top
  • 2" ultra-firm padding
  • Low height may help achieve ADA tax credit
  • Customize with options
  • Made in the USA by Clinton Industries
  • 500 lbs. (227 kg) load capacity under normal use
Download Spec Sheet
85100 Flat 3
85100 drop 2
85100 Desert Tan
85100 Royal Blue
85100 Burgundy
85100 Gunmetal
85100 Black
85100 Country Mist
85100 Warm Gray
85100 Slate Blue
85100 Flat 3
85100 drop 2
85100 Desert Tan
85100 Royal Blue
85100 Burgundy
85100 Gunmetal
85100 Black
85100 Country Mist
85100 Warm Gray
85100 Slate Blue

Specifications

Unit: Imperial Metric
85100 Open Base, Power Imaging Table with Window Drop Length/Diameter Width/Depth Height/Range
85100 72" 27" 18" – 35"
85100 183 cm 69 cm 46 cm – 89 cm

Color Charts

Upholstery Color Selector

Options

  • 012 Option WW
    012 Headrest/Power Tables

    • Padded and adjustable
    • The headrest extends the table’s length for extra tall patients

  • 030 Paper Dispenser PT
    030 Paper Dispenser- Power Table

    • Accommodates paper rolls from 18" (45.72cm) to 21" (53.34cm) wide

  • 040 Paper Cutter Option PT
    040 Paper Cutter-Power Table

    • Clear plastic with elastic straps and buckle

  • 034 Dispenser cutter combo PT
    034-Paper Dispenser/Cutter Combo-Power Table
  • 035 Option WW
    035 Armboard/Power Tables

    • Padded, ratchet style, rotating armboard
    • Rotates 180º
    • Interchangeable on right or left side

  • 080 Option WW
    080 Safety Straps

    • 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
    • 2 safety staps per set.
    • Bariatric straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners

  • 082 Option
    082 Side Rails

    • Pair
    • Positions up and down
    • Plunger height adjustment
    • 29" x 12"

  • 084 Option
    084 Hand-Held Height Control

    • Alternative to foot control
    • Stores easily under top when not in use

    NOTE: This option REPLACES the foot controller. ONLY the hand-held controller will accompany the table.

  • 087 Option
    087 Locking Casters

    • 3" heavy duty, rubber wheel, easy-roll casters

    Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)
