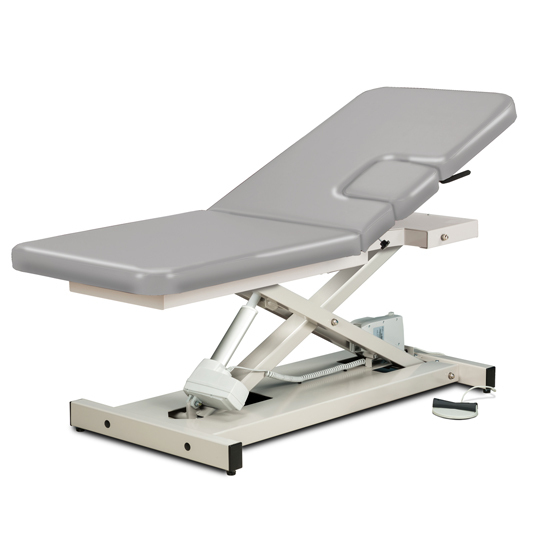

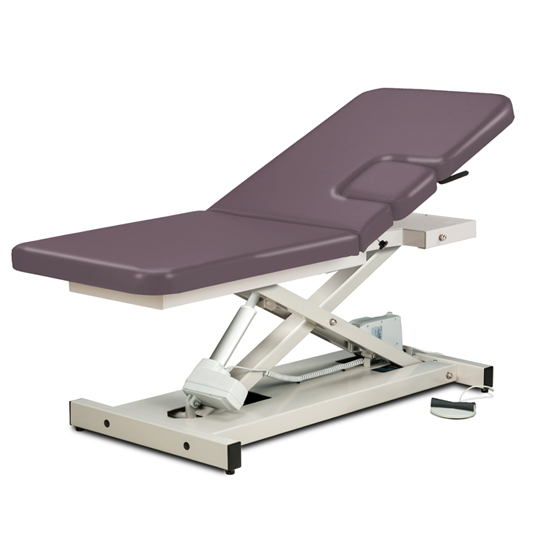

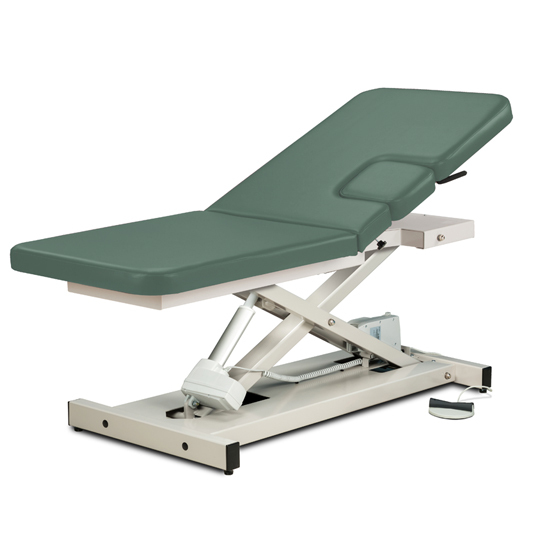

Open Base, Power Imaging Table with Window…

Pneumatic backrest is adjustable from either side and raises 80 degrees from flat
10" x 10" hinged imaging window section with metal slide latch
Electric power height adjustment with foot control
Ultra-strong, uni-frame base and top construction
Heavy duty, all welded, lift mechanism
Durable gray powder-coated steel frame
Self-lubricating pivot points
Smooth 110 volt electric height adjustment
Power supply and motor meets UL 60601-1 and CAN/CSA C22.2 601.1
Hands-free low voltage foot control
Easy service, self contained, electrical components
Rounded corner, upholstered top
2" ultra-firm padding
Low height may help achieve ADA tax credit
Customize with options
Made in the USA by Clinton Industries
500 lbs. (227 kg) load capacity under normal use

85200 Open Base, Power Imaging Table with Window Drop and Adjustable Backrest	Length	Width	Height Range
85200	72"	27"	18" – 35"
Backrest	38"	27"
85200	183 cm	69 cm	46 cm – 89 cm
Backrest	97 cm	69 cm

012 Headrest/Power Tables

• Padded and adjustable
• The headrest extends the table’s length for extra tall patients
030 Paper Dispenser

• Accommodates paper rolls from 18" (45.72cm) to 21" (53.34cm) wide
034 Paper Dispenser/Cutter Combo

Paper dispenser and paper cutter ordered as one option
035 Armboard/Power Tables

• Padded, ratchet style, rotating armboard
• Rotates 180º
• Interchangeable on right or left side
040 Paper Cutter

• Clear plastic with elastic straps and buckle
080 Safety Straps

• 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners
082 Side Rails

• Pair
• Positions up and down
• Plunger height adjustment
• 29" x 12"
084 Hand-Held Height Control

• Alternative to foot control
• Stores easily under top when not in use

NOTE: This option REPLACES the foot controller. ONLY the hand-held controller will accompany the table.
087 Locking Casters

• 3" heavy duty, rubber wheel, easy-roll casters

Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)
