Model # 85300

Model #85300

Open Base, Power Imaging Table with 3 Section Top

Request more information

Description
Specifications
Options
Color Chart
Videos
Catalogs

Model #85300

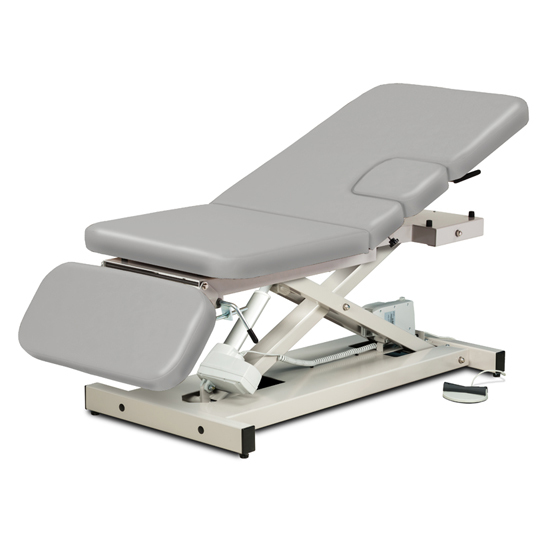

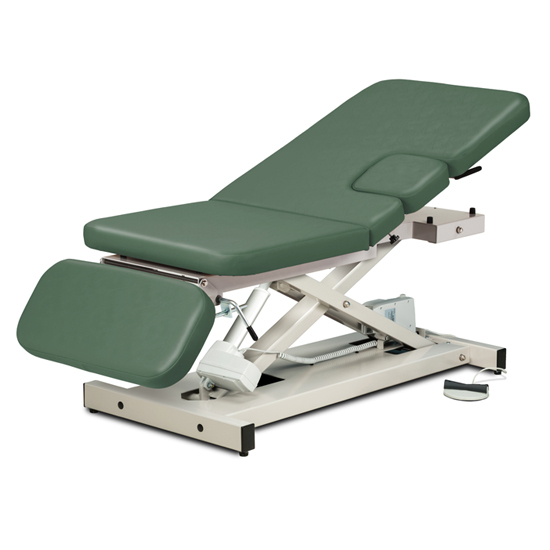

Open Base, Power Imaging Table with 3 Section Top

Pneumatic backrest is adjustable from either side and raises 80 degrees from flat
Footrest is adjustable from either side and lowers up to 80 degrees from flat
10" x 10" hinged imaging window section with metal slide latch
Electric power height adjustment with foot control
Ultra-strong, uni-frame base and top construction
Heavy duty, all welded, lift mechanism
Durable gray powder-coated steel frame
Self-lubricating pivot points
Smooth 110 volt electric height adjustment
Power supply and motor meets UL 60601-1 and CAN/CSA C22.2 601.1
Hands-free low voltage foot control
Easy service, self contained, electrical components
Rounded corner, upholstered top
2" ultra-firm padding
Low height may help achieve ADA tax credit
Customize with options
Made in the USA by Clinton Industries
500 lbs. (227 kg) load capacity under normal use

Download Data Sheet

Imperial
Metric

85300 Open Base, Power Imaging Table with 3 Section Top	Length	Width	Height Range
85300	76"	27"	18" – 35"
Backrest	38"	27"
Footrest	13"	27"
85300	193 cm	69 cm	46 cm – 89 cm
Backrest	97 cm	69 cm
Footrest	332 cm	69 cm

030 Paper Dispenser- Power Table

• Accommodates paper rolls from 18" (45.72cm) to 21" (53.34cm) wide

040 Paper Cutter-Power Table

• Clear plastic with elastic strap and buckle

034-Paper Dispenser/Cutter Combo-Power Table

080 Positioning Straps

• 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 straps per set.
• Larger straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners

082 Side Rails

• Pair
• Chrome
• Positions up and down
• Plunger height adjustment
• 29" x 12"

084 Hand-Held Height Control

• Alternative to foot control
• Stores easily under top when not in use

NOTE: This option REPLACES the foot controller. ONLY the hand-held controller will accompany the table.

087 Locking Casters

• 3" Heavy duty, rubber wheel, locking, swivel casters on all four corners makes it easy to reposition the table and then lock it securely it in place.

Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)
