Ready Room My Way, 72" Fashion Finish Cabinetry Suite

Home
Products
Clinton Ready Room
Ready Room My Way
Model # 8672-MW

Model #8672-MW

Ready Room My Way, 72" Fashion Finish Cabinetry Suite

Request more information

Description
Specifications
Options
Color Chart

Model #8672-MW

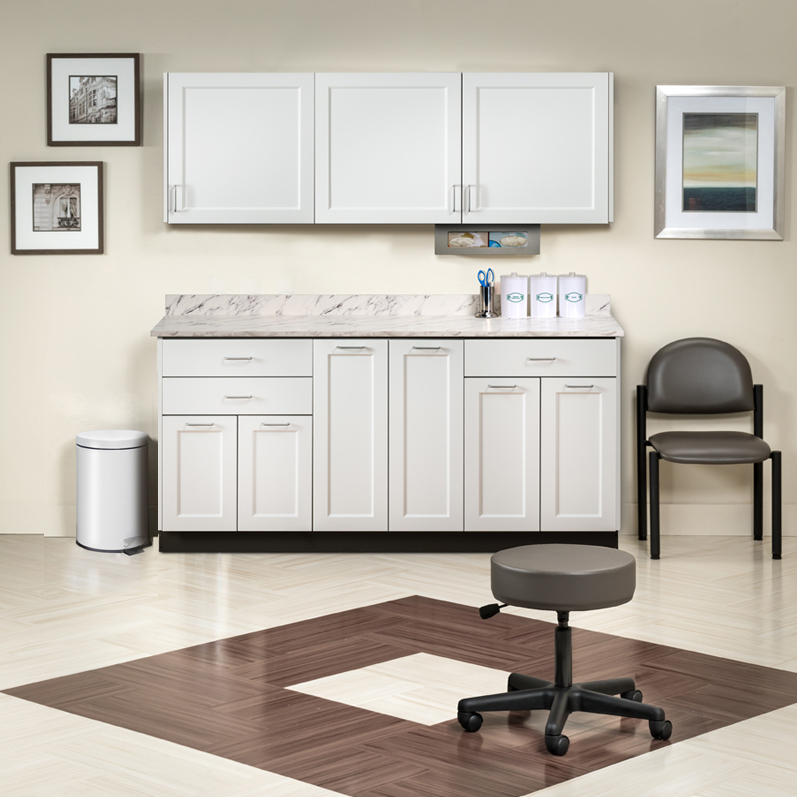

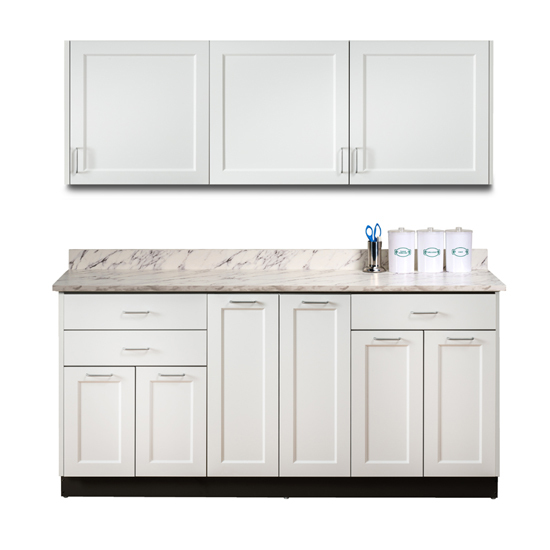

Ready Room My Way, 72" Fashion Finish Cabinetry Suite

• 72" Wall Cabinet in Arctic White or Metropolis Gray Fashion Finish
• 72" Base Cabinet in Arctic White or Metropolis Gray Fashion Finish
• Laminate countertop in your choice of 6 countertop colors
• 2135 Pneumatic Stool in your choice of upholstery color
• C-40B Premium, Padded, Side Chair in your choice of upholstery color
• Double, Slimline Glove Box holder (Stainless Steel*, White Enamel Steel or Acrylic, depending on availability)
• TR-20W 20 L (21.13 qts.), Medium, Round, White Enamel Waste Receptacle
• I-99 Instrument Mounting Board (Choose either 30" W x 12" H, or 36" W x 12" H)
(Instruments not included)

* Not MRI compatible

Add to Ready Room My Way Price

• Cabinerty Options
• Treatment/Exam Tables: Open Base Treatment Table, Cabinet Style Treatment Table, Space Saver Table, Exam Table, Power Table or Couch of your choice
• Additional Equipment or accessories

Download Data Sheet

Imperial
Metric

8672-MW Ready Room My Way, 72" Fashion Finish Cabinetry Suite	Width	Depth	Height
8372 Wall Cabinet	72"	12"	24"
8672 Base Cabinet	72"	18"	35"
2135 Stool	16" Seat Diameter	24" Base Diameter	18"–23"
C-40B Side Chair	18"Seat	18" Seat	32" Overall
TR-20W Trash Receptacle	14" Diameter	-	17.75"
Glove Box Holder	20"	3.75"	5.5"
Equipment Panel
8372 Wall Cabinet	183 cm	30 cm	61 cm
8672 Base Cabinet	183 cm	46 cm	89 cm
2135 Stool	41 cm Seat Diameter	61 cm Base Diameter	46 cm – 58 cm
C-40B Side Chair	46 cm seat	46 cm seat	81 cm overall
TR-20W Trash Receptacle	36 cm Diameter	-	45 cm
Glove Box Holder	51 cm	10 cm	14 cm

022 Stainless Steel Sink and Gooseneck Faucet with Wing Levers

• Stainless steel sink with wing lever, chrome faucet set
• Sink dimensions: Outside: 15" x 15" / Basin: 10" x 12" x 6"
• Faucet height: 14.5"
• Faucet radius: 3"
• All sink openings are pre-cut into the top for easy installation

For Standard Laminate and Fashion Finish Cabinets
If the location of the sink is not specified "as shown", you may choose to locate the sink on the right or on the left side (or center on 72" cabinets only) of the base cabinet. Please specify when ordering.

For Cart-Mate Cabinets, sink may only be placed as show for each model

Click here for drawing

044-FF 5-Drawer Option for Fashion Finish

• Available for any Fashion Finish base model
• 5 drawers in each vertical cabinet section
• Can not be positioned under a sink

055 Door and Drawer locks

• Individual cam lock for doors and drawers
• Independently operated
• Orders with multiple locks will be all keyed alike unless specified differently

Note: Locking features not meant to secure restricted items or narcotics.

066 Door Lock and Inside Latch Combo.

• Used on double door units,one door will have a lock, the other door will have a slide latch on the inside back

Note: Locking features not meant to secure restricted items or narcotics.

076-FP Wall Mounted Desk Option with Laminate Top for Fashion Finish Casework

• Wall mounted desk to match Fashion Finish casework
• Laminate top included to match cabinet top
• Must mount to cabinet unit and wall (wall mounting hardware not included), not free-standing
• 24"L x 19" D x 30" H (including Top)
